CQE-RC-04050
Crystal Quest Nitrate Removal + SMART Replacement Cartridge
Replacement Filters
Crystal Quest Nitrate Removal + SMART Replacement Cartridge
Description
Crystal Quest Nitrate/Multi Filter Replacement Cartridge has a combination of special nitrate-selective resin, Eagle Redox Alloy® 6500, Eagle Redox Alloy® 9500, and Coconut Shell GAC media. Nitrate reduction is 90% to 95% and breakthrough is not affected by sulfate levels. The cartridges can be regenerated using sodium chloride brine.
*Cartridge color is subject to change without notice.
| SKU | SIZE | FLOW RATE | CAPACITY (<100 PPM HARDNESS) |

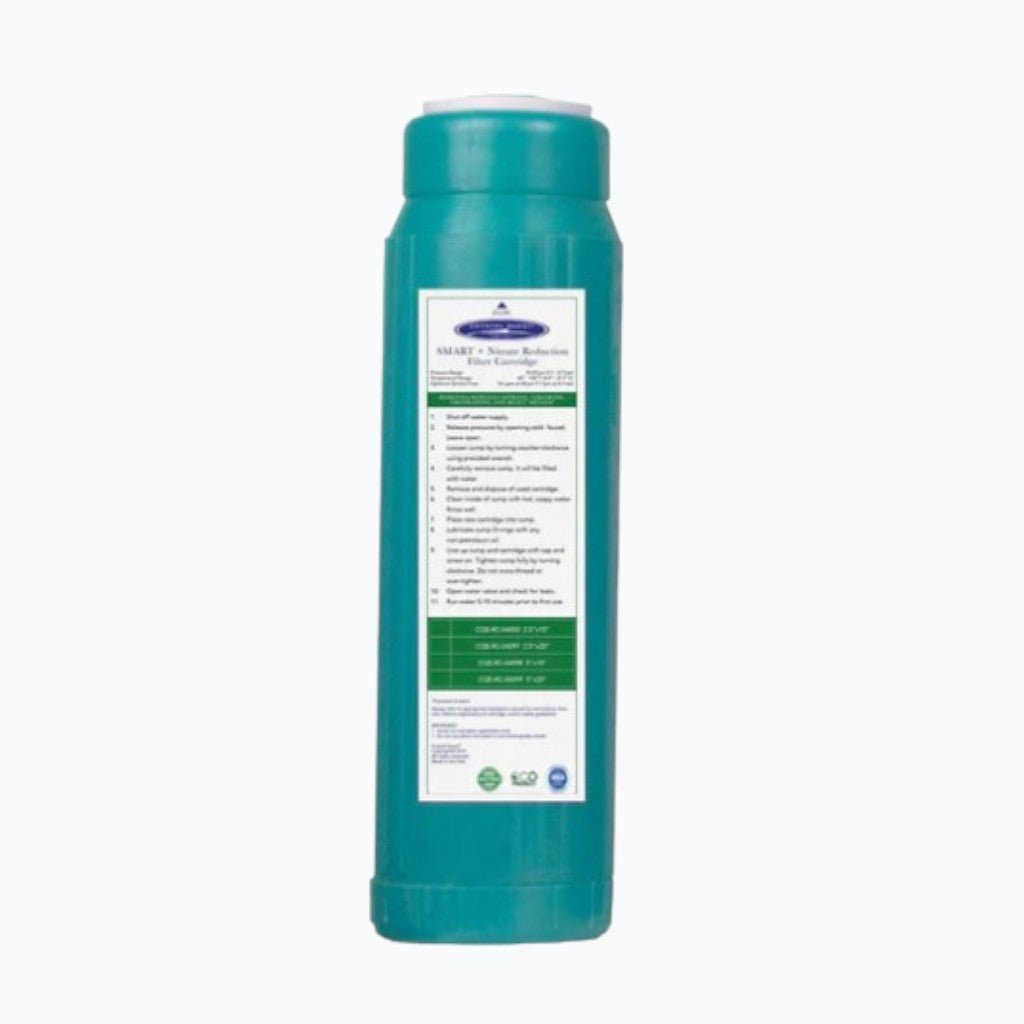

| CQE-RC-04050 | 2-7/8” x 9-3/4” | .5 gpm (1.9 lpm) | 3,000 ppm Nitrate* |

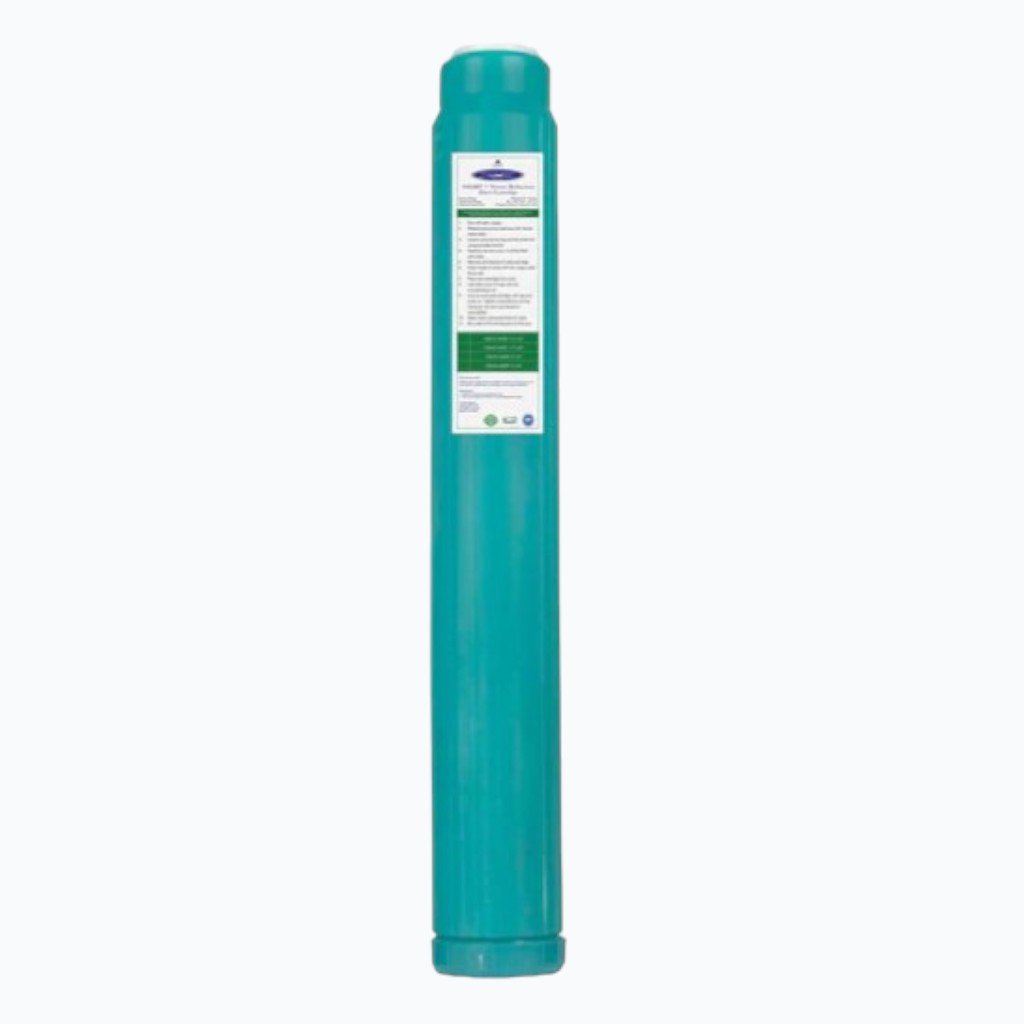

| CQE-RC-04097 | 2-7/8” x 20” | 2.5 gpm (9.4 lpm) | 5,500 ppm Nitrate* |

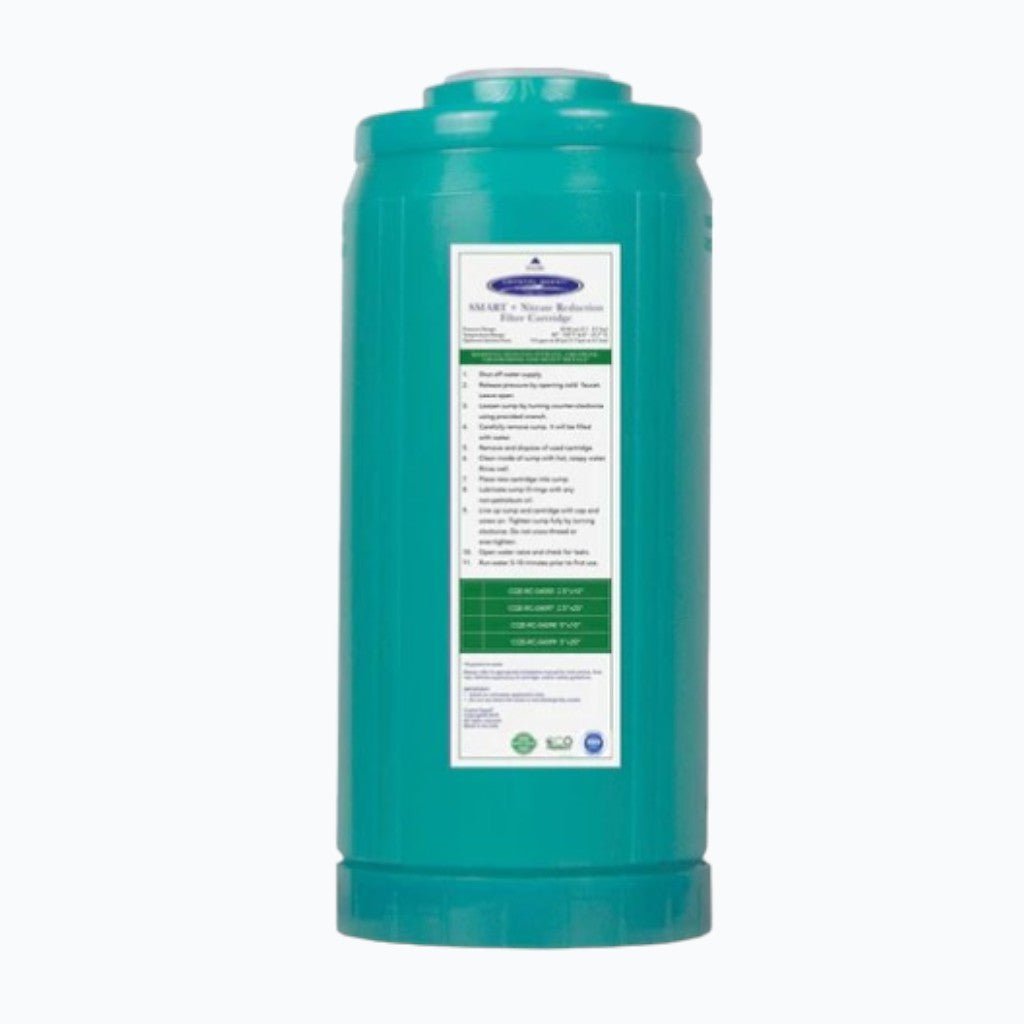

| CQE-RC-04098 | 4-5/8” x 9-3/4” | 3 gpm (11.4 lpm) | 5,500 ppm Nitrate* |

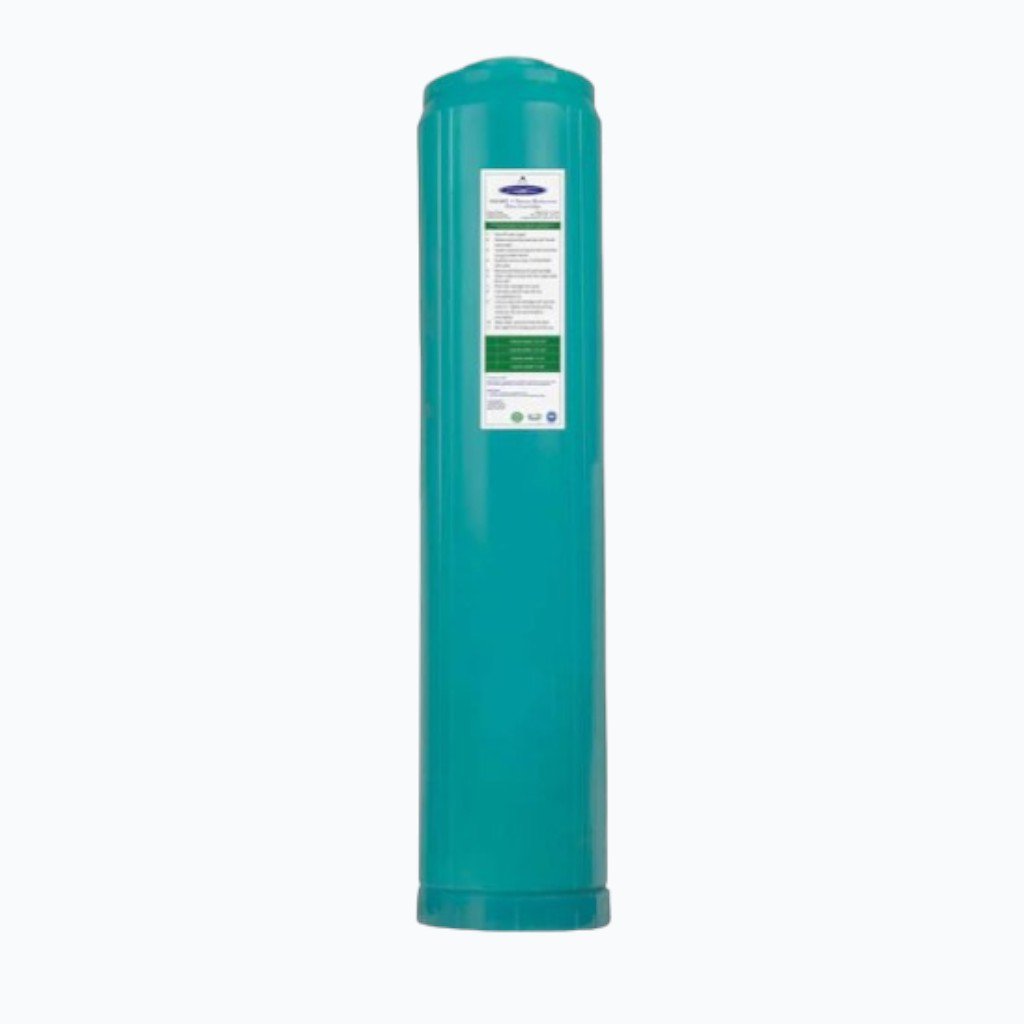

| CQE-RC-04099 | 4-5/8” x 20” | 6 gpm (22.7 lpm) | 9,500 ppm Nitrate* |
| Construction Materials | Operating Specifications |
|
|
• Minimum Operating Pressure: 20 psi (1.4 bar) |
| • Polypropylene End Caps | • Maximum Operating Pressure: 60 psi (4.1 bar) |
| • Polyolefin Inner/Outer Wraps | • Minimum Operating Temperature: 40° F (4° C) |
| • Polyethylene Netting | • Maximum Operating Temperature: 90° F (32° C) |
Important Note: The cartridge(s) in this system require manual salinity regeneration. The media must be recharged in order to maintain optimum performance. If the media is not regenerated, then the media will exhaust and result in a permeate of 0. The cycle of regeneration will vary based on the influent level of contaminants. The regeneration process should be done every 20 to 30 days depending on level of nitrate.
The process of regeneration involves dissolving salt in water (2-3 cups of salt for every 3-4 cups of water) stir well and soak (you may want to use something to hold the cartridge down) the cartridge for 1-2 hours, then soak the cartridge in tap water for an additional 1-2 hours, rinse with the tap running tap water and reinstall the cartridge. Regeneration is not required before its first use even if the cartridge has been unopened for a period of time.
Questions & Answers
Have a Question?
-
How do you regenerate this cartridge? Are there instructions or video? And how many times can the resin be regenerated? Years?
The process of regeneration involves dissolving salt in water (2-3 cups of salt for every 3-4 cups of water) stir well and soak (you may want to use something to hold the cartridge down) the cartridge for 1-2 hours, then soak the cartridge in tap water for an additional 1-2 hours, rinse with the tap running tap water and reinstall the cartridge. Regeneration is not required before its first use even if the cartridge has been unopened for a period of time.
