CQE-IN-00117
Crystal Quest Fluoride Removal In-line Water Filter System
Replacement Filters
Crystal Quest Fluoride Removal In-line Water Filter System
Description
Water Travels Through 8 Stages of Filtration:
- In stage 1, water travels through a solid carbon cartridge for removing volatile organic carbon compounds (VOC's, insecticides, pesticides and industrial solvents).*
- In stage 2, water flows through a FLUORIDE REMOVAL cartridge containing Fluoride Charcoal Granulated Activated Carbon (GAC) . This media is specifically designed to have a high affinity for Fluoride, Lead and Arsenic. It removes metals through a mixture of adsorption and chemical reaction with the media; therefore, the elimination is not reliant on ion exchange. It has uniform particle size, is physically stable and can be used over a wide pH range. Capacity: 4500 ppm Fluoride (Avg. 1000 to 1500 Gallons). Fluoride reduction is 85% to undetectable
- Also effectively removes lead and arsenic.
- In stages 3 and 8, water flows through pre and post one - micron filter pads (1 micron equals 1/25,000th of an inch), which remove suspended particles such as silt, sediment, cyst (Giardia, Cryptosporidium), sand, rust, dirt, and other un-dissolved matter.
- In stages 4 and 5, water flows through a bed of media made of a special high-purity alloy blend of two dissimilar metals - copper and zinc (ERA-6500, ERA-9500). ERA-6500 and ERA-9500 are major advancements in water treatment technology that works on the electro-chemical and spontaneous-oxidation-reduction (Eagle Redox Alloy®) principles. Chlorine is instantaneously and almost inexhaustibly oxidized.
- In stage 6, water flows through ion exchange resins, reducing heavy metals such as lead, copper, aluminum, and water hardness. Ceramic and Tourmaline balls to enhance the water and maintain a more alkaline pH
- In stage 7, water flows through granulated activated carbon (GAC). GAC is universally recognized and widely used as an effective adsorbent for a wide variety of organic contaminants, such as chlorine (99.9%), chemicals linked to cancer (THM's, benzene) pesticides, herbicides, insecticides, volatile organic compounds (VOC's), PCB's, MTBE's and hundreds of other chemical contaminants that may be present in water causing bad taste and odors in your drinking water. All Crystal Quest® GAC is a mixed blend of coconut shell and catalytic GAC to address both chlorine, chloramines and these byproducts.
Fluoride Removal Triple Inline Water Filter System eliminates the impurities of tap water to offer great taste and pureness. It is quick and easy to install and use, attractive, convenient, and effectively removes many contaminants from water.

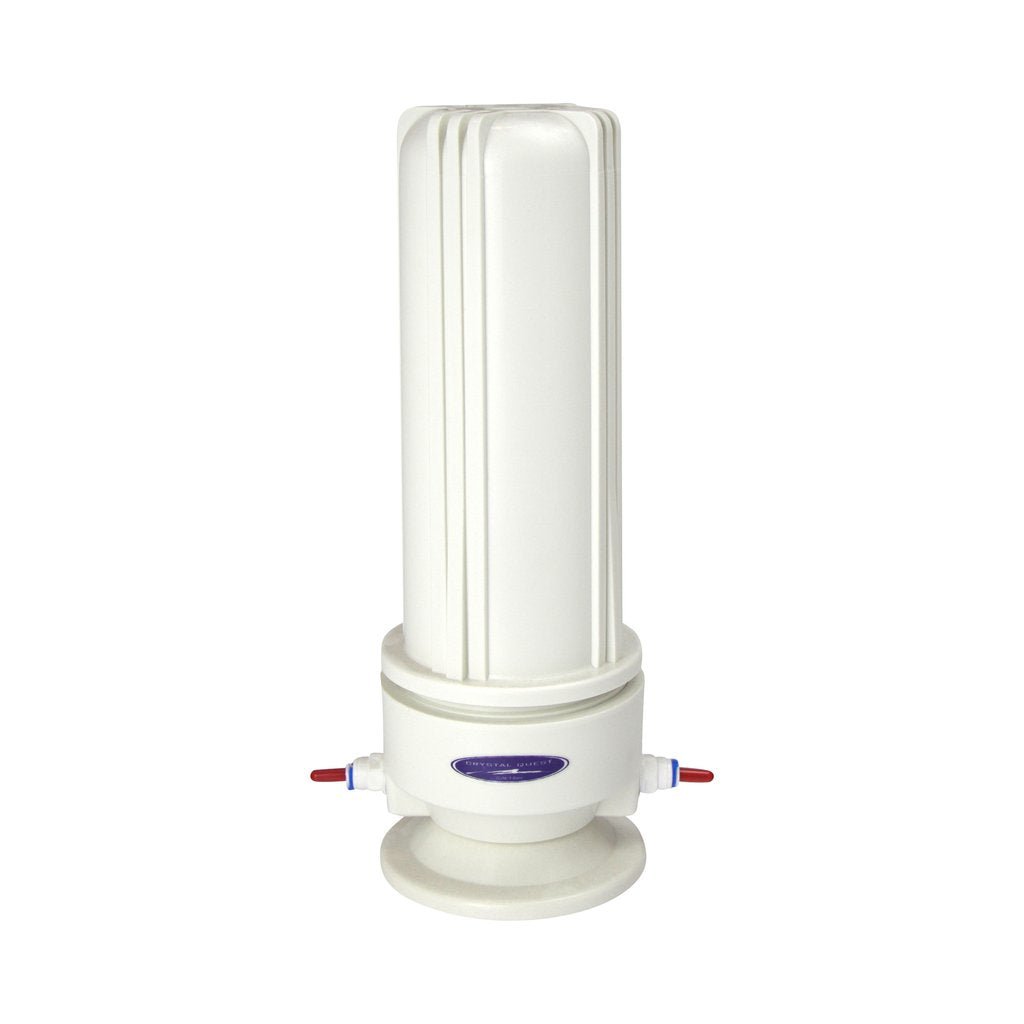

Single comes with Fluoride Cartridge

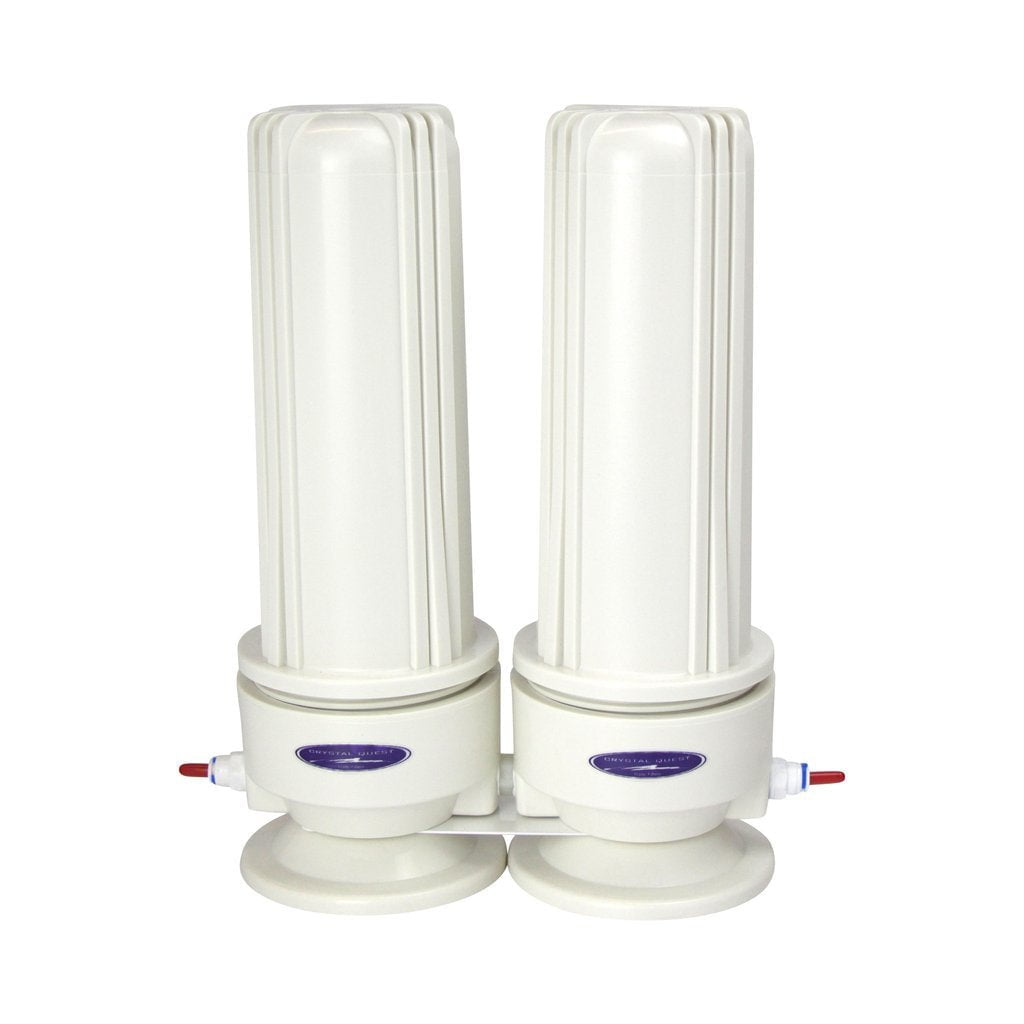

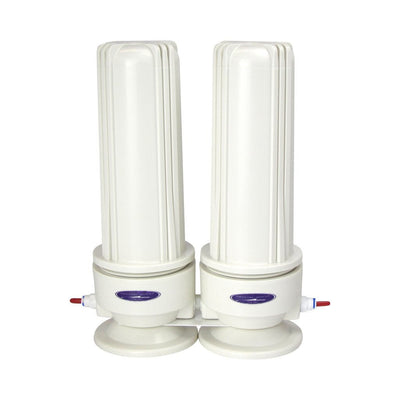

Double comes with Smart Filter and Fluoride Filter

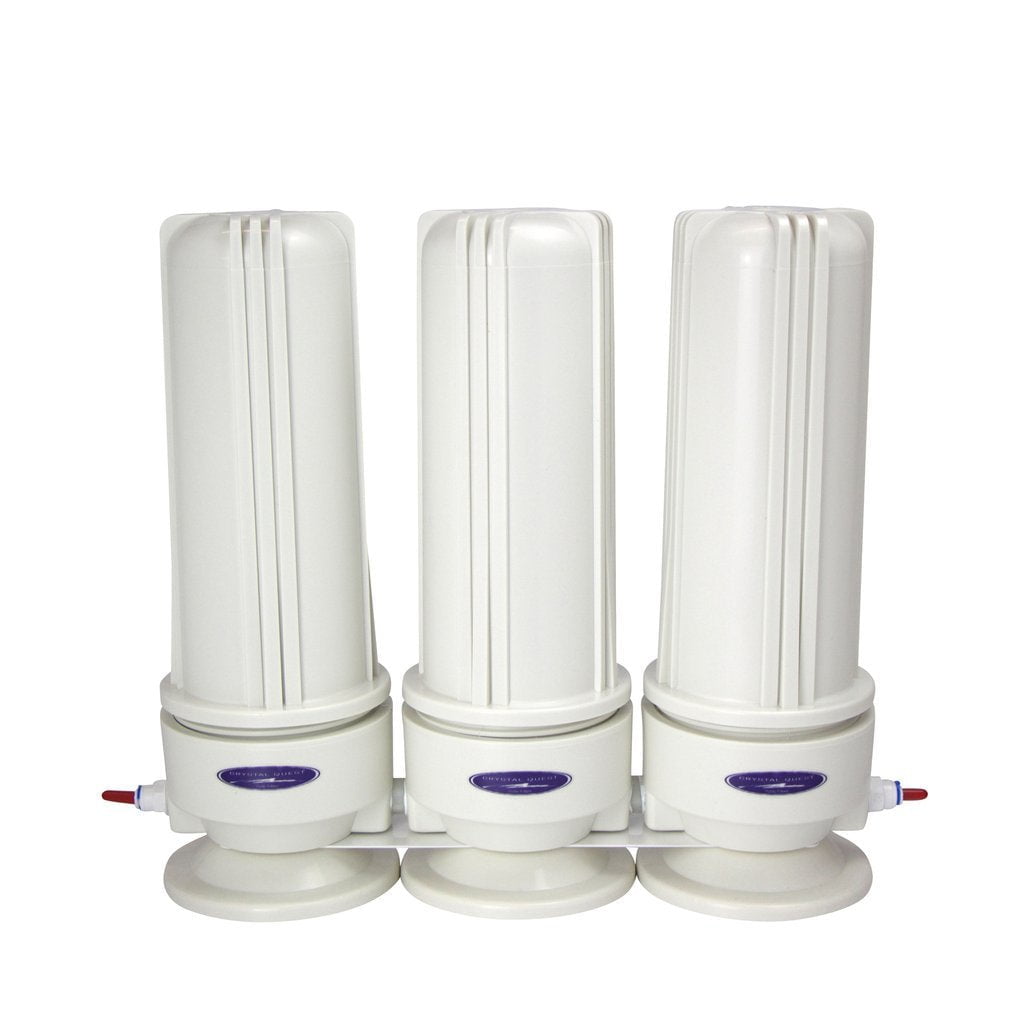

Triple comes with a Smart Filter, Carbon Filter, and Fluoride Filter
Specifications
Min Operating Pressure: 20 psi (pounds per sq. in.)
Max Operating Pressure: 60 psi (pounds per sq. in.)
Min Operating Temperature: 40 degrees F
Max Operating Temperature: 90 degrees F
Max Flow Rate: 0.3-0.5 gallons per minute
Questions & Answers
Have a Question?
-
are all three filters needed to eliminate the contamenents mentioned?
Yes, you would need all three. Here is a link to an inline filter that has one canister that will remove all the contaminants.
-
How often do filters need to be replaced?
You would change the fluoride and carbon block filter every 1,000 gallons or yearly, and the multistage filter every 10,000 gallons, depending on your water quality..
-
What percent of fluoride is removed from the filter?
Fluoride reduction is 85% to undetectable.
-
Which filter would effectively remove e the worst contaminants including iron?
Here is a link to our iron filters. The Crystal Quest also removes a wide range of contaminants as long as you add the SMART filter to the system.
Iron Water Filters
