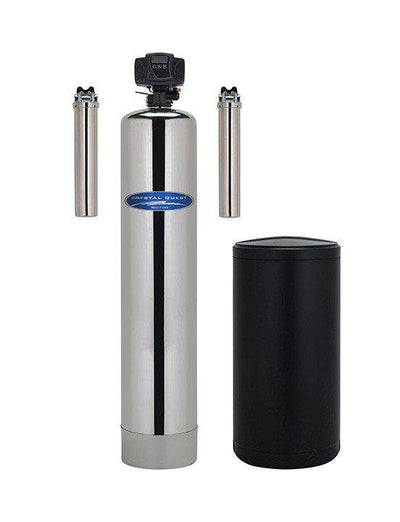

The Crystal Quest 3 Stage Whole House Water Softener System has 3 stages of filteration.

Water is hard when it contains minerals like calcium and magnesium. You may see staining on your sinks, tubs, showers, and clothing. You may also notice less lather from your shampoos and soaps and even a feeling of film on your skin. All these are symptoms of the need for softened water.

Hard water also causes a higher risk of limescale deposits in household water systems. The negative effect of limescale buildup is that pipes are blocked and the efficiency of hot boilers and tanks is reduced. This increases the cost of domestic water heating by about fifteen to twenty percent. Another negative effect of limescale is that it has damaging effects on household machinery, such as laundry machines. Water softening means expanding the lifespan of household machines, and the lifespan of pipelines. It also contributes to the improved working and longer lifespan of solar heating systems, air conditioning units and many other water-based applications.

Water is softened or conditioned by replacing hard ions like calcium and magnesium with softer sodium or potassium ions. Water softeners must be regenerated** regularly, renewing their ability to remove hardness from water. Time-initiated or solid state softeners regenerate at a fixed time when their softening capacity is predicted to be low. Demand-initiated softeners regenerate automatically when they sense their capacity is low.

Water Travels Through 3 Stages of Filtration

  • Stage 1 - Water flows through a 20” sediment cartridge that removes sediment, silt, sand, and dirt.
  • Stage 2 - Water flows through an ion exchange mineral tank and brine water conditioner.
  • Stage 3 - Water flows through a 20” solid carbon cartridge for removing volatile organic carbon compounds (VOCs), insecticides, pesticides and industrial solvents.*

Product Manual

*If present in the water

**Frequent regeneration with sodium chloride (salt) or potassium chloride required.


  • 1.5 cu. ft. resin
  • 48,000-grain capacity
  • Service Flow: 9-11 GPM


  • 2.0 cu. ft. resin
  • 60,000-grain capacity
  • Service Flow: 10-13 GPM

The current processing time for orders is 1 to 5 business days

Free shipping on orders over $69.99 and $6.99 flat rate shipping for orders under $69.99  in Mainland 48 States only.  For all others please contact for shipping quote.

Questions & Answers

Have a Question?

Ask a Question
  • What are the specs for this unit How much hardness will it remove.

    The brine tank is 18"X33" the tank is 10"X54". It has 1.5 cubic foot of resin media; it has 48,000-grain capacity. and a flow rate of 9-11 GPM or 2.0 cubic ft of resin and 60,000 grain capacity with a flow rate of 10 to 13 GPM

  • Can i do DIY

    If you mean hook it up yourself yes, but for warranty issues it should be hooked up by a licensed plumber.
